Aluminum Plank Flood Barriers
DamGuard’s Aluminum Plank Flood Barriers deliver proven, slot-in protection for doors, docks, garages, and storefronts—defending your property with a system that’s as straightforward as it is secure.
SPECIFICATION
DamGuard-inc™ Removable Aluminum Plank Barriers
Modular | Lightweight | Reusable Flood Protection
General Description

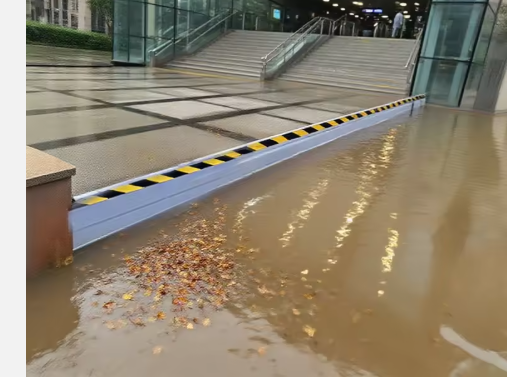

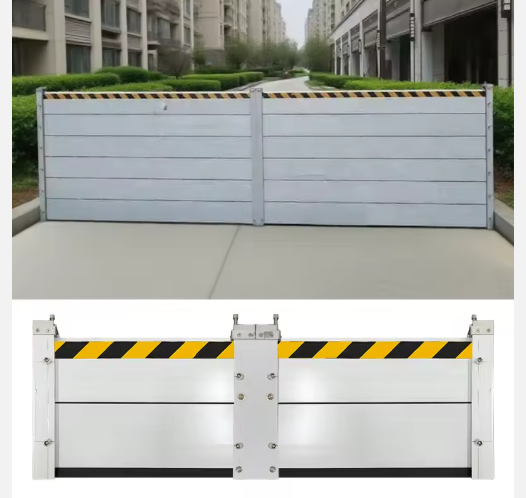

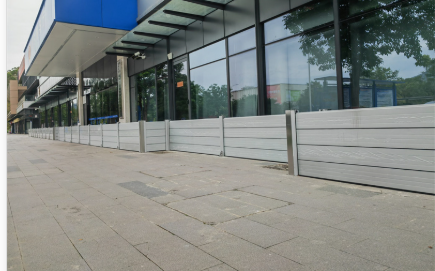

The DamGuard Removable Aluminum Plank Barrier System is a modular flood defense solution for doorways, storefronts, garages, and industrial openings. Using stackable aluminum planks secured in side posts, the barrier creates a watertight seal against floodwaters.
When not needed, planks are removed and stored, leaving only low-profile side channels in place — maintaining a clean architectural finish.
Key Technical Specifications
Barrier Heights 0.3 m – 3.0 m (configurable)
Barrier Lengths Up to 5.0 m per bay (extendable with posts)
Plank Depth150–200 mm (profile dependent)
Deployment Time~10–15 min (3 m x 1.2 m, 2-person crew)
Design Flood Load Up to 30 kN/m² (per FEMA flood maps)
Leakage Rate≤ 0.5 L/min per linear meter
Service Life25+ years with regular maintenance
Materials & Construction
Planks: Marine-grade aluminum alloy (6061-T6) hollow-core extrusions
Side Frames: Stainless steel/aluminum post channels (anchored or embedded)
Intermediate Posts: Removable aluminum/stainless posts for spans > 5 m
Seals: EPDM/neoprene gaskets (UV, oil & chemical resistant)
Fastening System: Stainless steel quick-lock clamps or cam-locks
Finish: Anodized or powder-coated aluminum for long-term corrosion resistance
Operation
Standby: Only slim side posts visible.
Deployment: Planks manually stacked into posts; seals compress between layers.
Locking: Final compression bar/top clamp secures the barrier watertight.
Removal: After flood event, planks are removed, cleaned, and stored.
Applications
Residential: doors, garages, patios
Commercial: storefronts, shopping malls, loading docks
Industrial: factories, power stations, warehouses
Marine: docks, harbors, ferry terminals
Compliance & Standards
FEMA Hazard Mitigation Guidance: Recognized removable system
ASTM E 331 / EN 12208: Watertightness standards
ISO 12944: Corrosion protection
ADA Compliant: Flush sill options available
